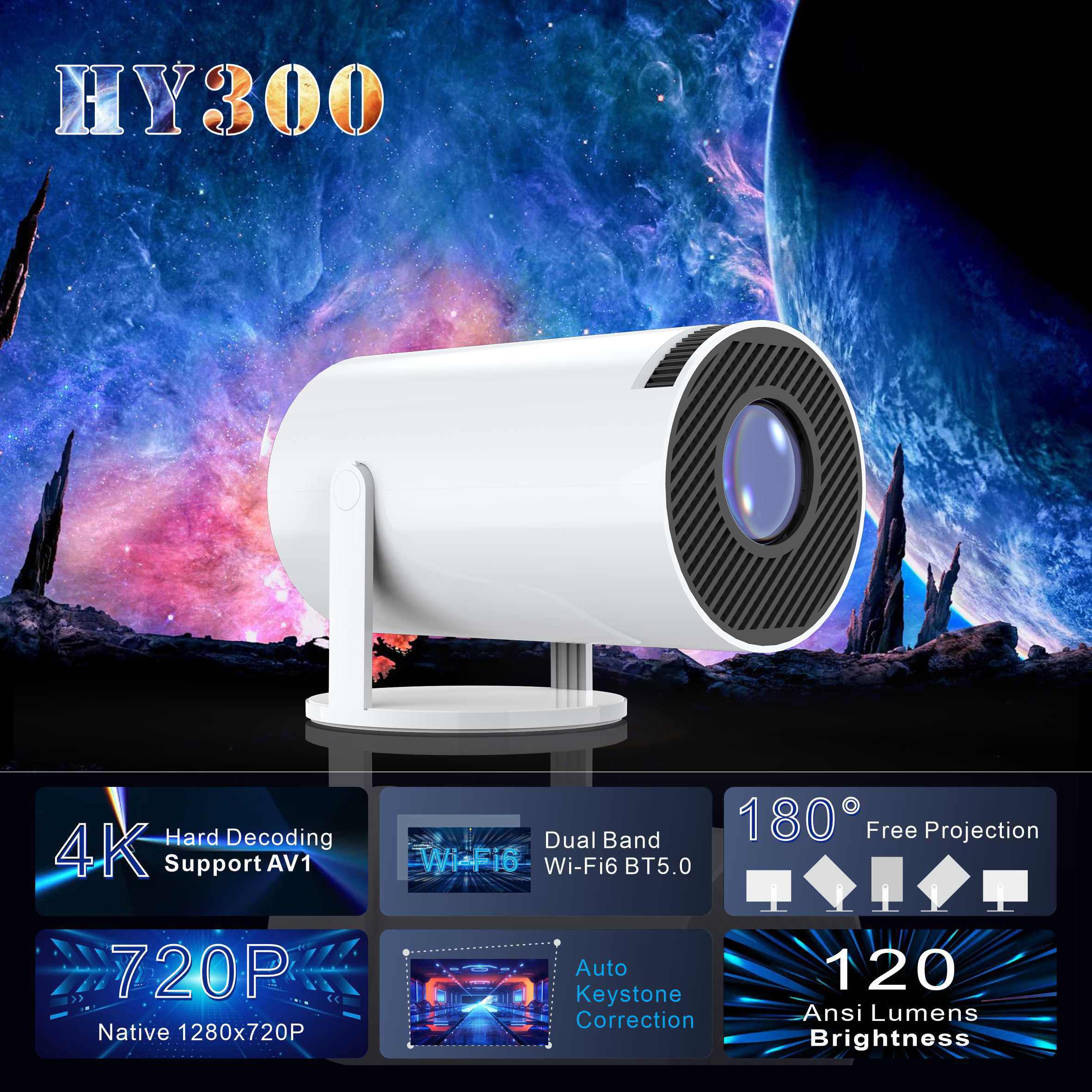

3600Lumens, 4K projector

The brightness of the ismartX2 projector can reach 3600 lumens, and it has the lowest price with the same configuration. It uses the all Winner H713 chip, can play 4K videos, and has a native resolution of 1280*720P, providing sufficiently stable and clear pictures.

HY300 中性英文版详情页-1-2.png



Support WiFi mirroring display function

Ismartx2 is pre-installed with WiFi projection software, which can connect to your mobile phone or laptop to use the mirroring function. You only need to connect to the same WiFi to connect the devices and play your favorite pictures or videos.

HY300 中性英文版详情页-6.png



Sensitive automatic correction function

When you move the projector, the image correction function of the IsmartXprojector can quickly and automatically adjust the tilted image to ensure that you can get a flat image. You can adjust it manually in the settings.

HY300 中性英文版详情页-7.png



180° free style projection angle

You can choose where you need to project without moving the projector, whether it is a wall or ceiling, whether you are sitting or lying down, according to your room layout and viewing method.

HY300 中性英文版详情页-8.png

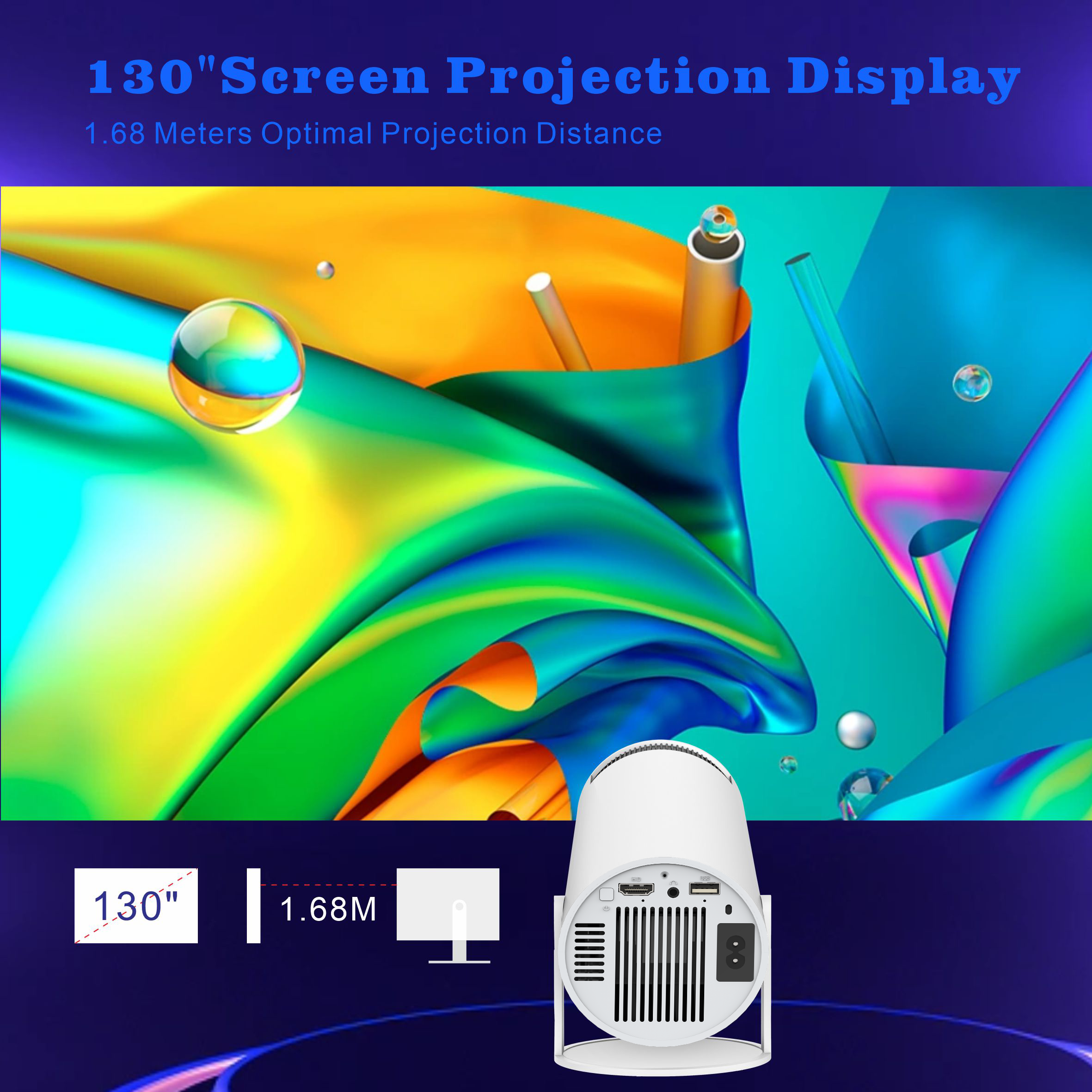

Large 130 inch screen

The IsmartX2 projector has a projection ratio of 1.37:1 and supports screen ratios of 16:9 & 4:3. It can obtain different screen sizes according to different projection distances, and the maximum projection size can reach 130 inches.

HY300 中性英文版详情页-5.png



Low noise

IsmartX projector during operation, good heat dissipation performance, good cooling fan, running sound is small, reduce the impact on video sound.

HY300 中性英文版详情页-11.png



A variety of apps to enjoy every moment

In addition to pre-installed entertainment software such as YouTube and Netflix, Ismartx projector can also install any application you like in the Google Store, combining traditional projection functions with the functions of Android TV box, giving a different viewing experience.

HY300 中性英文版详情页-4.png



Portable mini projector

The portable projector can be placed in a handbag and carried outdoors for use. Whether traveling or on a business trip, you can take it with you without getting bored.

HY300 中性英文版详情页-9.jpg

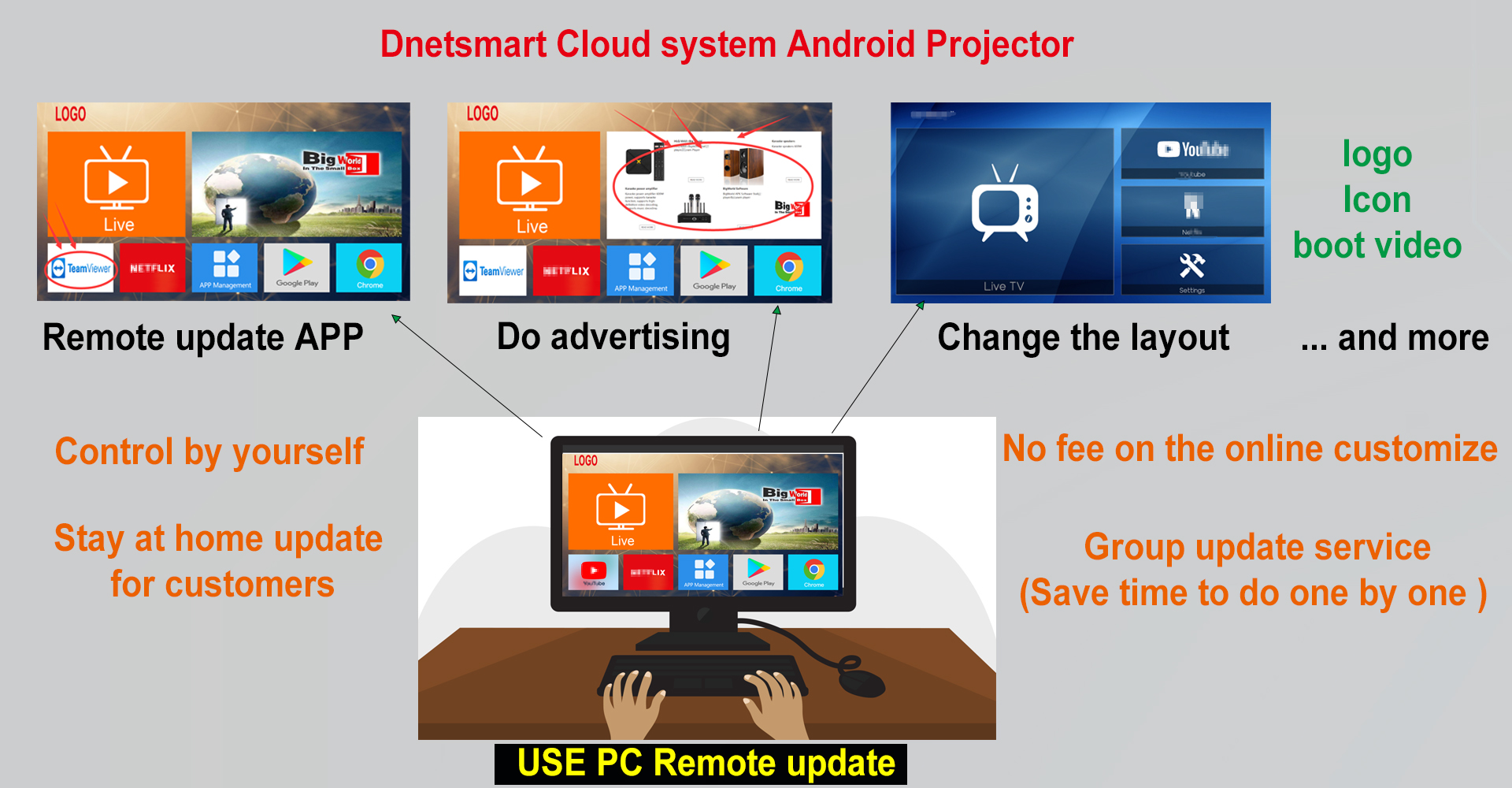

Customization support

1. Product packaging customization

2. Print the logo on the product shell

3. Software customization

4.Dnetsmart Cloud system customized startup animation and user interface (free)

Dnetsmart cloud system.jpg



Product specification

Product Description

Smart Projector

Operation System

Android 11.0

CPU

Allwinner H713 Quad-core ARM Cortex-A53

GPU

Mali-G31  supports OpenGL ES3.2,Vulkan 1.1,and OpenCL2.0

Buffer Memory(RAM)

1G (optional 2GB)

Storage(ROM)

8G (optional 16/32/64GB)

WIFI

AW869A -- Dual band WiFi6 + BT5.0 Module Spec

HDMI

Optional  HDMI IN/HDMI OUT

Projection Technique

 2.69inch LCD TFT display

Native Resolution

1280*720P

Supported Resolution

720P

Color Temperature

8000K ±(1000K)

Brightness(Lumens)

 120 ANSI lumens

Contrast Ratio

 1500:1

Image Flip

  360 degrees flip

Lens

 3 pieces glass lens

Aspect Ratio

16:9 & 4:3

Throw Ratio

1.37

Keystone Correction

voluntarily

Support 3D

NO

Language

Support for multiple languages

Bulb Life

50000 Hrs

Lamp Type

 60W

Adjustment Mode

Manual focus

Operation Mode

Button pannel and remote control

Projection Distance

1.2-4M

Optimal Projection Distance

1.68M

Projection Size

40-130 inch

Speaker

1*3W

Fan Noise

  <25 dB

Working Voltage(V)

 AC90-260V/50-60MHZ

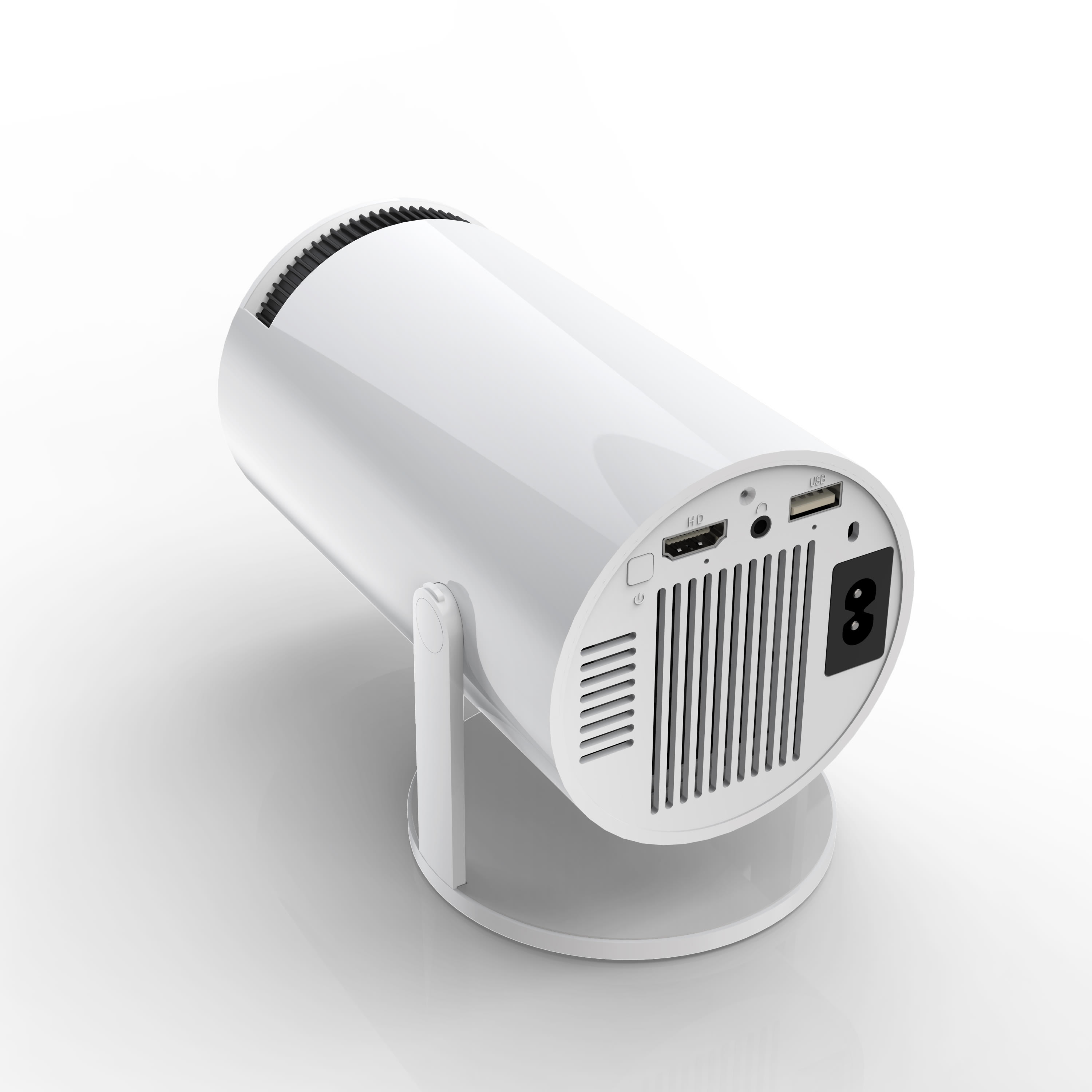

Interface

 USB*1/HDMI *1/AUDIO*1

Audio File

MP3/WMA/ACC

Image File

JPG,BMP,PNG,support image scaling

Video File

Full-format decoding including HEVC/VP9/AVS2/AVC 4K@30fps and MPEG1/MPEG2/AV1 1080p/60fps decoding and so on

Text Reading

TXT

Machine Size

Ø100.8X188

Color

Black+White

Usage

Home theater, entertainment, early childhood education, video conference, online teaching

Standard Accessory

User Manual,Power cord,Remote control,

Adapter

Power cord 1.2m

Power supply

110-220V

WIFI

Yes

Fast Boot

3 Sec

Product size

Diameter 189X101MM

Desk weight(kg)

0.65kg

Net weight

0.9kg

Gift Box Size

155*118*218mm

Carton Box Size

615*330*455mm

Packing quantity

20PCS/CTN
