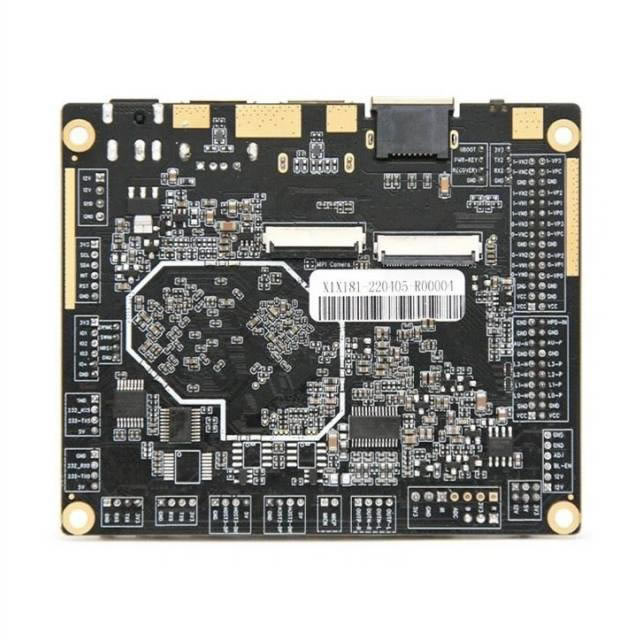

AIoT-3566X Intelligent Self-Service Terminals Mainboard
1. RK3566 super CPU, equipped with Android 11 system, faster speed and stronger performance.
2. Support 2.4G (5G compatible) WIFI, single antenna.
3. Network port design, support 100M network port.
4. Rich expansion interfaces. 4 USB ports (1 USB2.0 OTG, 1 USB3.0 Host + 2 USB2.0), 4 expandable serial ports (2 TTL, 2 RS232), GPIO and ADC interfaces , can meet the requirements of various peripherals on the market.
5. High definition. Support up to 1080P 60fps H.265/H.264 video encoding, supports LCD displays with LVDS/eDP/MIPI and other interfaces, and not support dual-screen display.
Scope Of Application
AIOT-3566X is a commercial display intelligent self-service terminal motherboard, which is generally applicable to: interactive advertising machine, interactive digital signage, intelligent self-service terminal, intelligent retail terminal, O2O intelligent equipment, industrial control host, robot equipment, etc.
Product Overview
AIOT-3566X adopts Rockchip RK3566 (quad-core Cortex-A55) quad-core 64-bit super CPU, equipped with Android11 system, and the main frequency is up to 1.8 GHz. Adopt Mali-G52 GPU, support 1080P 60fps H.265/H.264 video encoding. It supports LVDS, EDP, MIPI display (single display), with stronger performance, faster speed and richer interfaces. It is your best choice for human-computer interaction, intelligent terminals, and industrial control projects.
| List of Basic Functions | |
| Main functional parameters | |
| Size | 100mm*80mm, 1.6mm thickness |
| CPU | RK3566, Quad-Core，main frequency is up to 1.8GHz |
| GPU | Quad-core Mali-G52 GPU High-performance GPU |
| Operating system | Android 11 |
| RAM/Storage | Standard 2G (4G optional) / Standard 8G (16G/32G/64G optional) |
| Built-in ROM | 2KB EEPROM（Not included by default, optional） |
| MIPI output | Can directly drive MIPI LCD screens of various resolutions |
| LVDS output | 1 single/dual channel, can directly drive 1920x1080 LCD screen |
| eDP output | Can directly drive 1920x1080 resolution eDP interface LCD screen |
| Mipi Camera | 30pin FPC interface, support 8 million pixel Camera |
| Video format | Support mp4, mkv, wmv, mov, flv, etc. |
| Picture format | Support BMP, JPEG, PNG, GIF |
| Audio input/output | Speaker output (support left and right channel output, built-in dual 4R/20W, 8R/10W amplifier), MIC IN |
| USB port | 1 USB2.0 OTG, 1 USB3.0 Host + 2 USB2.0 HOST |
| Serial/Extension Interface | 2 RS232, 2 TTL, 1 DEBUG, 1 IIC, 4 GPIO interfaces, 1 ADC, 1 IR |
| WIFI、BT | Built-in WIFI, BT4.0 (optional) support 2.4G WIFI, single antenna |
| Ethernet | Support 10/100M adaptive Ethernet |
| RTC real-time clock | Support, support timing switch |
| System upgrade | Support local USB upgrade |
