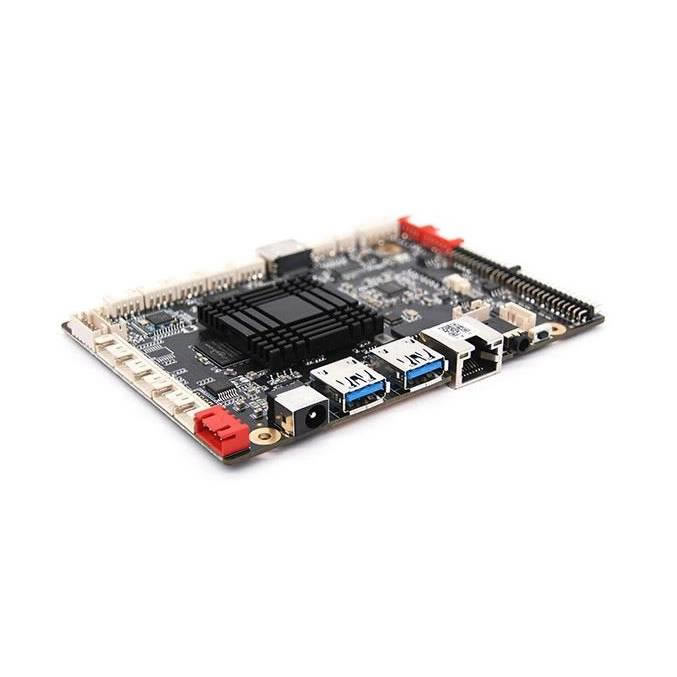

AIoT-3568S Intelligent Self-Service Terminal Mainboard

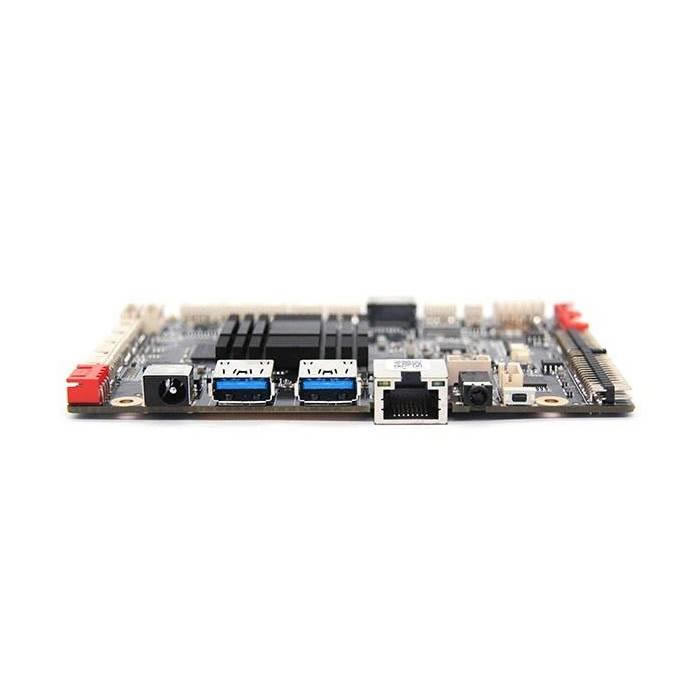

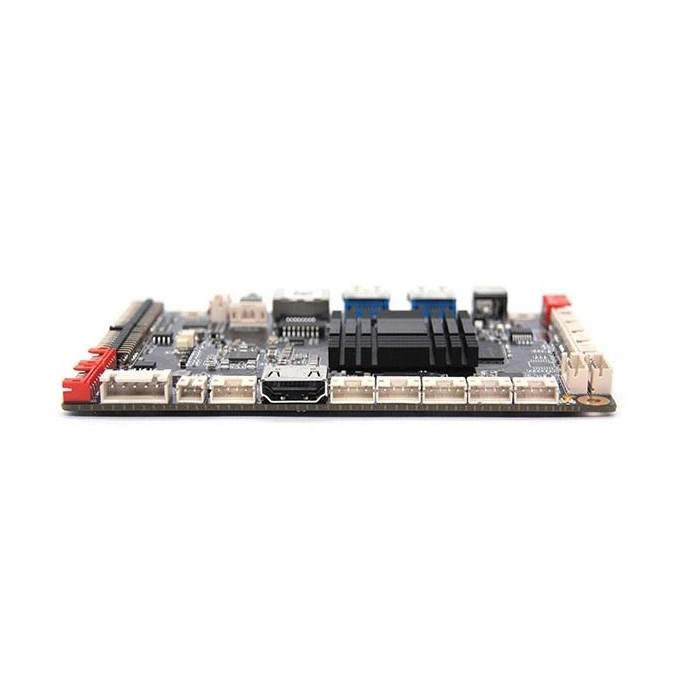

1. High integration. Integrated HDMI/LVDS/EDP/MIPI/Ethernet/WIFI/BT, simple and ultra-thin, extraordinary.

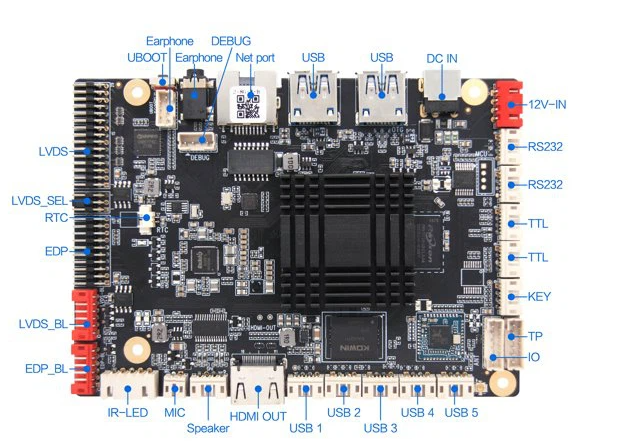

2. Rich extension interface: 7 USB interfaces( 5 plug pin, 2 standard USB interface), 4 serial ports(2 TTL, 2 RS232), GPIO/ADC interface, it can meet the requirements of various peripherals in the market.
3. Support dual-screen differential display. LVDS screen supports up to 1920*1200 resolution, EDP screen supports up to 2560*1600 resolution, MIPI screen supports up to 1920*1200 resolution
4. Support Android system customization, provide system call interface API reference code, and perfectly support the development of upper-layer applications for customers.
5. It perfectly supports various mainstream touch screens such as infrared, optical, capacitive, resistive, touch film, etc., and supports HID configuration of drive-free touch screens without debugging.
Scope Of Application
AIoT-3568S is a commercial display self-service terminal mainboard, generally applicable to smart display terminal products, video terminal products, industrial automation terminal products, such as advertising machine, digital signage, smart self-service terminal, smart retail terminal, O2O smart device, Industrial control PC, robot device etc.

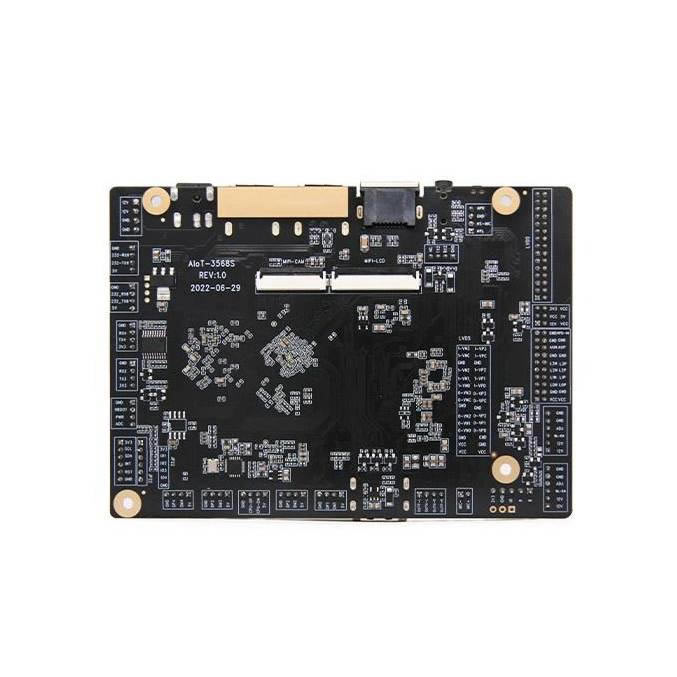

Product Overview
AIoT-3568S adopts Rockchip RK3568（Cortex-A55x4）quad-core CPU, equipped with Android11 system, main frequency up to 2.0GHz，can provide 1T computing power support，rich functional interface, small and thin motherboard, board frame only 127*90MM, super performance. Whether it is benchmark or decoding, it is your new choice for human-computer interaction and industrial control projects.
| List of Basic Functions | |
| Main functional parameters | |
| Size | 126*90mm |
| CPU | RK3568A, quad-core, main frequency is up to 2.0GH，provide 1T computing power support |
| Operating system | Android 11.0 |
| RAM/Storage | Standard configuration 2G/ Standard configuration 8G |
| Built-in ROM | 2KB EEPROM（Not included by default, optional） |
| HDMI output | 1, standard Type-A female socket, up to 4Kx2K@60Hz resolution |
| LVDS output | 1，support single/dual 8bit, can directly drive 50/60Hz LCD screen |
| eDP output | 1， can directly drive a variety of resolution eDP interface LCD screen |

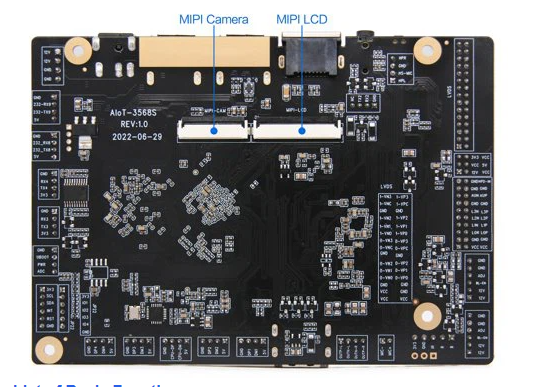

| MIPI output | 1， can directly drive a variety of resolution MIPI interface LCD screen |
| Video format | Support mp4, mkv, wmv, mov, flv, etc. |
| Picture format | Support BMP, JPEG, PNG, GIF |
| Audio input/output | Speaker output (support left and right channel output, maximum support dual 20W / 4R，10W / 8R), MIC IN*1 |
| Headphone output | Support one channel three/four band earphone plug in |
| USB port | 1 USB3.0 OTG、6 USB HOST |
| serial port | 4：2*232，2*TTL |
| TP port | 1. TP screen with I2C interface can be connected |
| Network support | 1. Support 10/100/1000M adaptive Ethernet |
| 2. Built-in WIFI，supports BT4.2 | |
| RTC real-time clock | Support |
| System upgrade | Support local USB upgrade |
