CPU: RK3568A, Quad-Core，main frequency is up to 2.0GHz
RAM/Storage: Standard 2G (4G optional) / Standard 16G (8/32/64G optional)
Built-in ROM: 2KB EEPROM（Not included by default, optional）
HDMI output: 1, standard Type-A female socket, up to 4Kx2K@60Hz resolution
Product Introduction
1.1 Scope Of Application
Mbox-3568A Information Publish Box is generally applicable to smart display terminal products, video terminal products, industrial automation terminal products, such as advertising machine, digital signage, smart self-service terminal, smart retail terminal, O2O smart device, Industrial control PC、robot device etc.
1.2 Product Overview

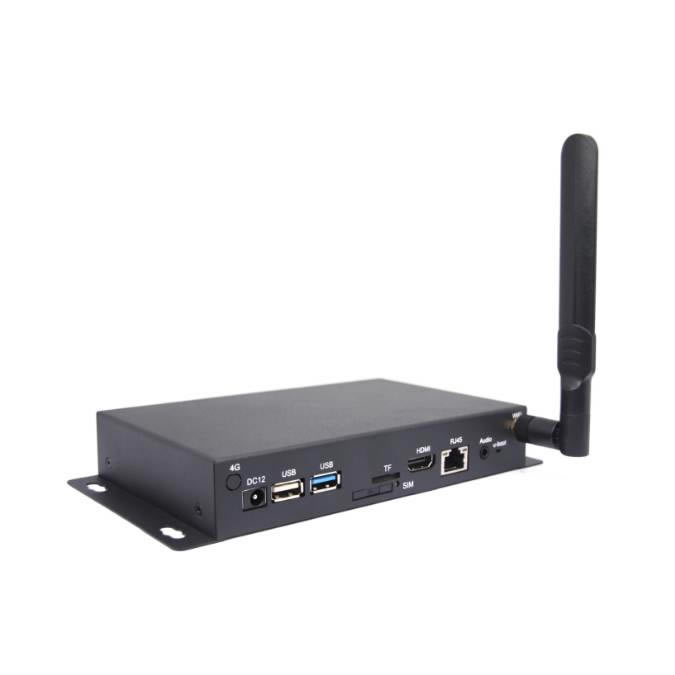

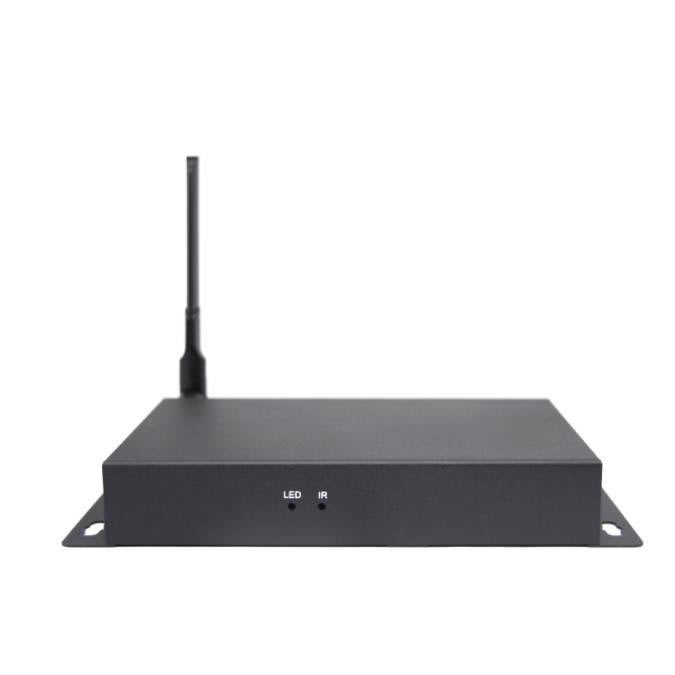

MBox-3568A adopts Rockchip RK3568 (Cortex-A55x4) quad-core CPU, equipped with Android11 system, and the main frequency is up to 2.0 GHz, with super performance and rich interfaces. It is the best choice for human-computer interaction and industrial control projects, whether it is benchmark or decoding.
1.3 Product Feature
l High definition. Support decoding at up to 4K 4096x2304.
l Built in PCI-E 3G module, support HUAWEI, LongShang and other PCI-E 3G/4G modules, support internet access and phone calls.
l TV + Box = Smart Advisement Player.
l Industrial appearance, ultra-thin design.
l Supports wifi/ Ethernet /3G/4G (Bluetooth 4.2 standard).
l Supports split-screen playback, horizontal and vertical playback, and auto-play on power-up.
l Supports picture and video rotation, scrolling subtitles, WORD, EXCEL, PPT.
List of Basic Functions
Main functional parameters | |
CPU | RK3568A, Quad-Core，main frequency is up to 2.0GHz |
RAM/Storage | Standard 2G (4G optional) / Standard 16G (8/32/64G optional) |
Built-in ROM | 2KB EEPROM（Not included by default, optional） |
HDMI output | 1, standard Type-A female socket, up to 4Kx2K@60Hz resolution |
Video format | Support mp4, mkv, wmv, mov, flv, etc. |
Picture format | Support BMP, JPEG, PNG, GIF |
Audio Output | Speaker headset audio output, speaker output (support left and right channel output, maximum support dual 20W / 4R，10W / 8R) |
Network support | 3G/4G, Ethernet, WiFi support |
USB port | 1 USB3.0 OTG, 1USB HOST |
Storage card | Support TF card |
RTC real-time clock | Support |
support timing switch | Support |
Ethernet | 1. Support 10/100/1000M adaptive Ethernet |
WIFI、BT | Built-in WIFI, BT4.2 (standard) |
3G/4G | Built-in WCDMA,EVDO, 4G full network, support network access and voice calls |
System upgrade | Support local USB upgrade |
